Whitlands Engineering design and manufacture a small range of hoppers and elevators to further increase efficiency in commercial firewood production.

3.6M ELEVATORS FOR WS3150 & WS4150

Load your wood directly into your truck or trailer and save double handling. This 3.6m Elevator fits to the WS3150 & WS4150 Superaxe models. The elevator will reach up to 3 meters and folds for travelling. It utilises a manual winch mechanism to fold and unfold elevator and set up takes only a few minutes.


The 3.6 meter fold out elevator can be ordered as an add-on to any new machine orders, or ordered separately to be retrofitted to an exisiting machine WS3150 or WS4150.


The innovative design folds for travelling, utilising a manual winch mechanism to fold and unfold elevator. Set up takes only a few minutes.


Like all machinery built by Whitlands Engineering, the elevator is built to last.


Available in various sizes, free standing elevators allow flexibility in wood handing + movement


  • 6hp Honda/Subaru Power Pack makes elevator self contained
  • Sargent Stripe belt for better grip and higher lift
  • Griddle & Tray (Sorts out fines and rubbish from wood)
  • Larger hopper Extra reach chute 2pc construction of main frame – for economical freight
  • Radial stack option only available on 13m
Length 6 meter 9.5 meter 13 meter
Tray width 420/620mm 620mm 620mm
Height @ 15 degrees 2100mm 3000mm 4000mm
Height @ 30 degrees 3300mm 5000mm 7000mm
Axle width 1500mm 2400mm 3800mm
Belt type Rough Top Rough Top Rough Top
Construction 2.0mm sheet 3.0mm sheet/35 RHS 3.0mm sheet/40 RHS
Hopper Standard Standard Standard
Wheels 155-13 185-14 R65-15
Retractable Hitch 50mm ball Standard Standard Standard
Elevator Lift Hand Winch Hand or Elec. winch Hydraulic Ram
Hydraulic Motor Drive 250cc standard 4000cc standard 400cc H. Duty

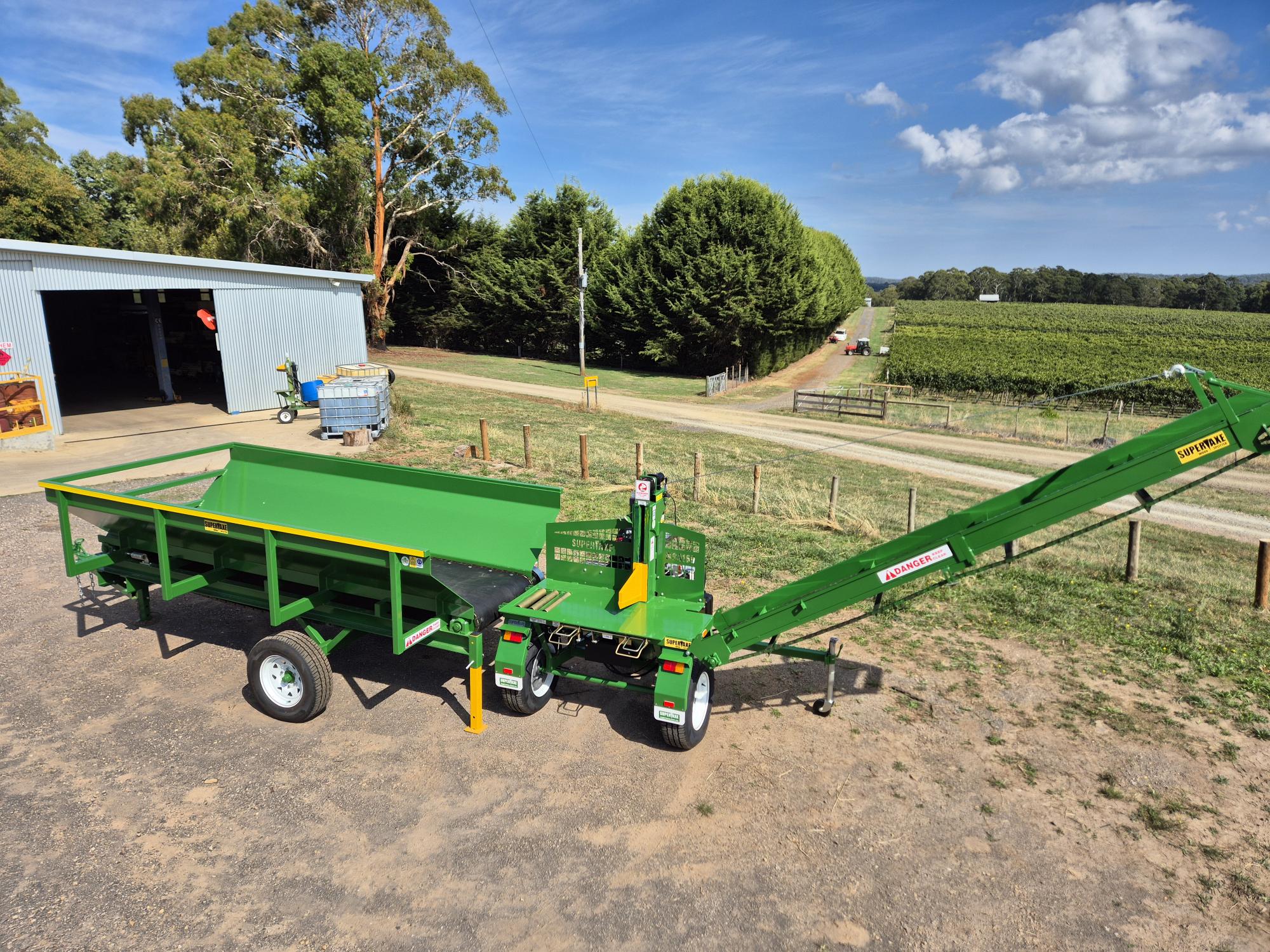

Infeed hoppers have the potential to more than double splitting production by reducing wood handling. The hopper is filled with a loader, which means the operator spends less time away from the splitter. This 4m3 hopper feeds timber onto the wood splitter bench for splitting, and is powered by the hydraulics on the wood splitter.
