Designed and built in Australia, the WS3150 Superaxe is Australia’s favorite wood splitter. This powerful and robust machine features a large workspace and a hydraulic block lifter, making it ideal for individuals, hire companies or small commerical operations – with engine, hire and registration options to suit.

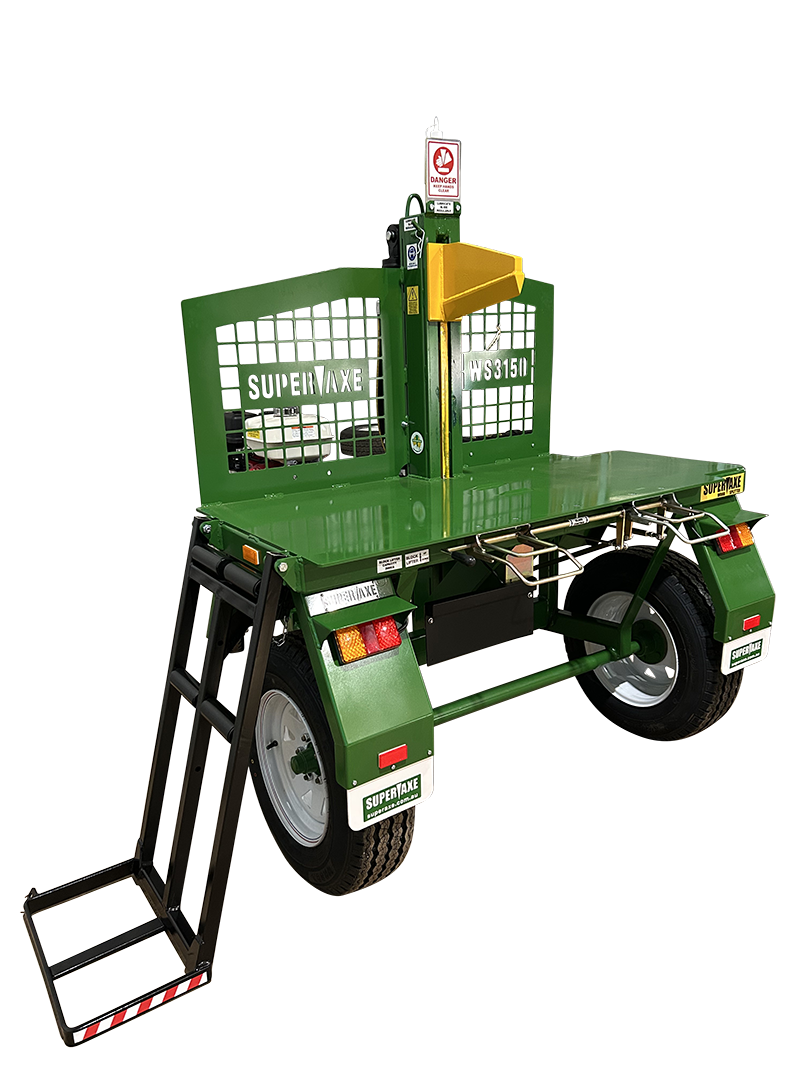

SUPERAXE WS3150

OVERVIEW

Since 1993, the legendary Superaxe has earned it’s reputation as the industry leader. The WS3150 Superaxe is the middle-sized machine in the range; with more space to work and powerful engine options. Built to order in our Victorian workshop, this machine is perfect for individuals, hire companies or small commerical operations.

FEATURES

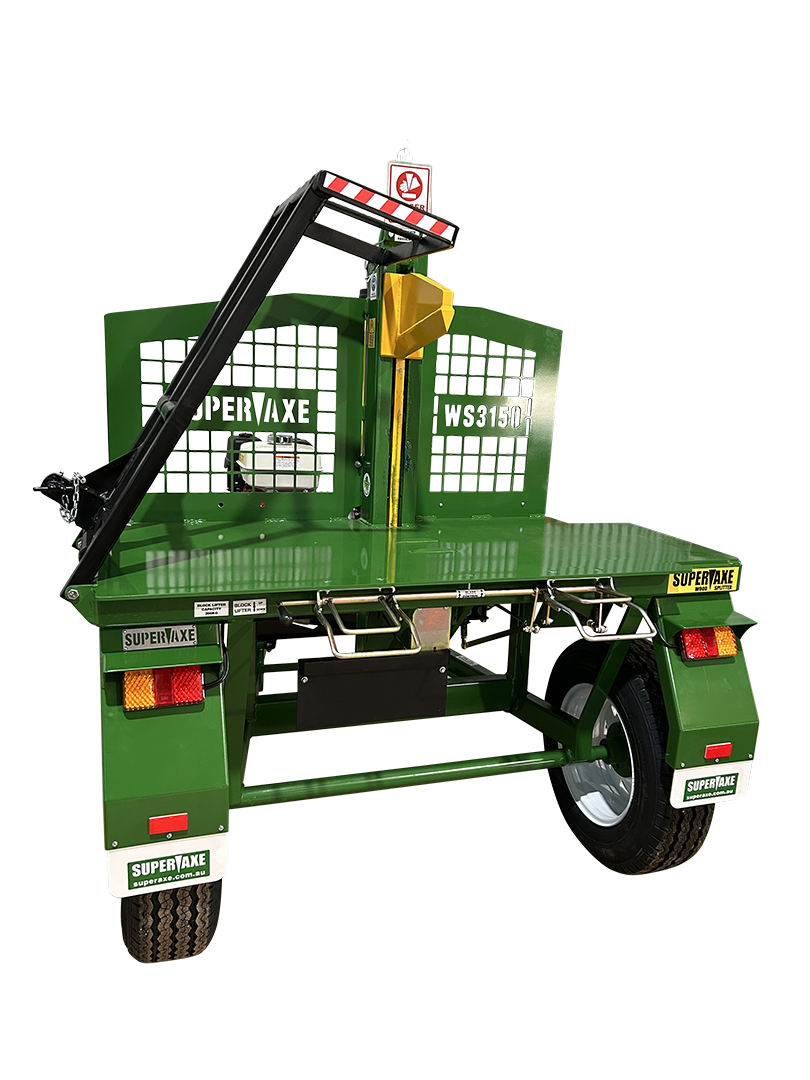

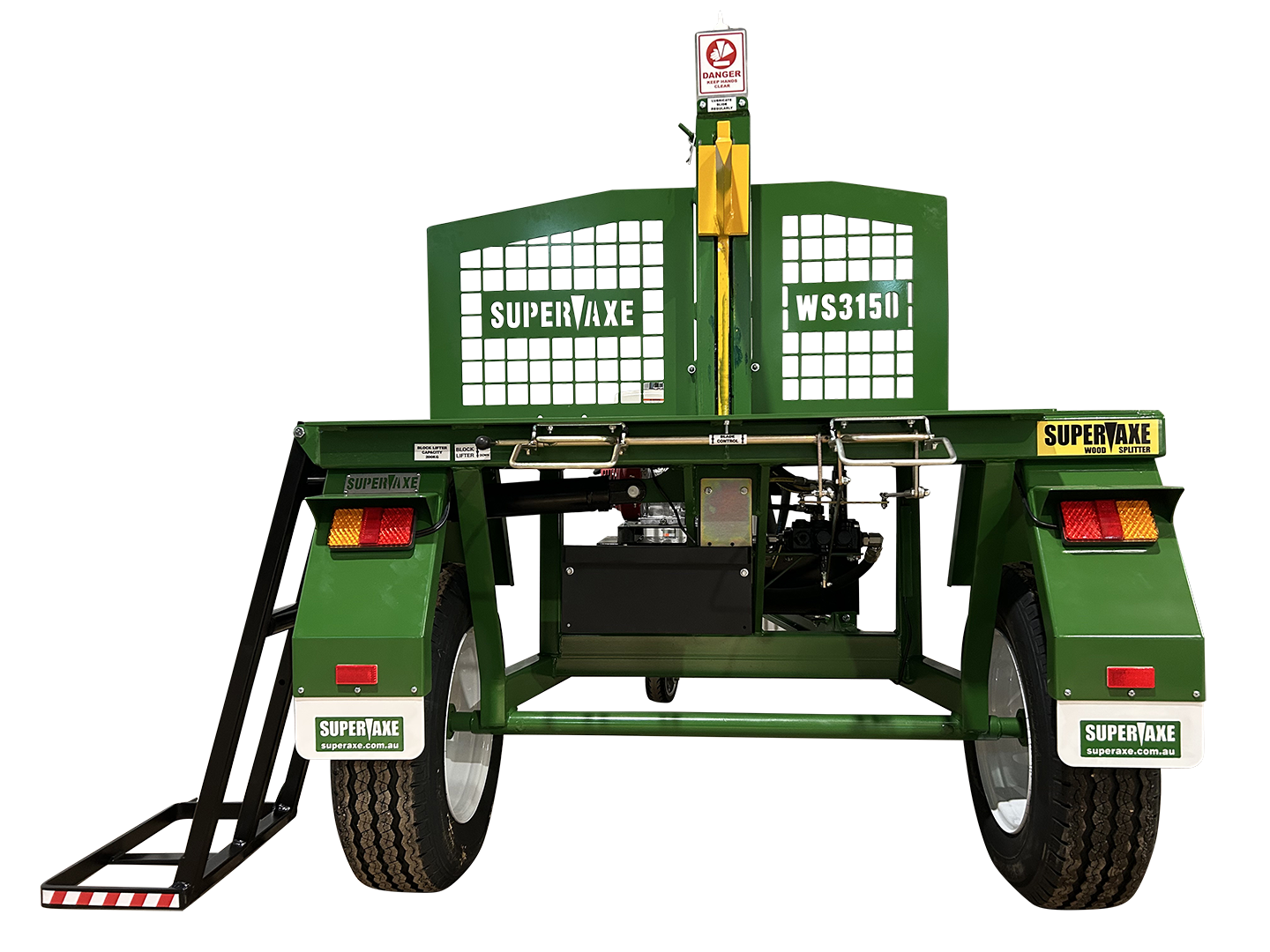

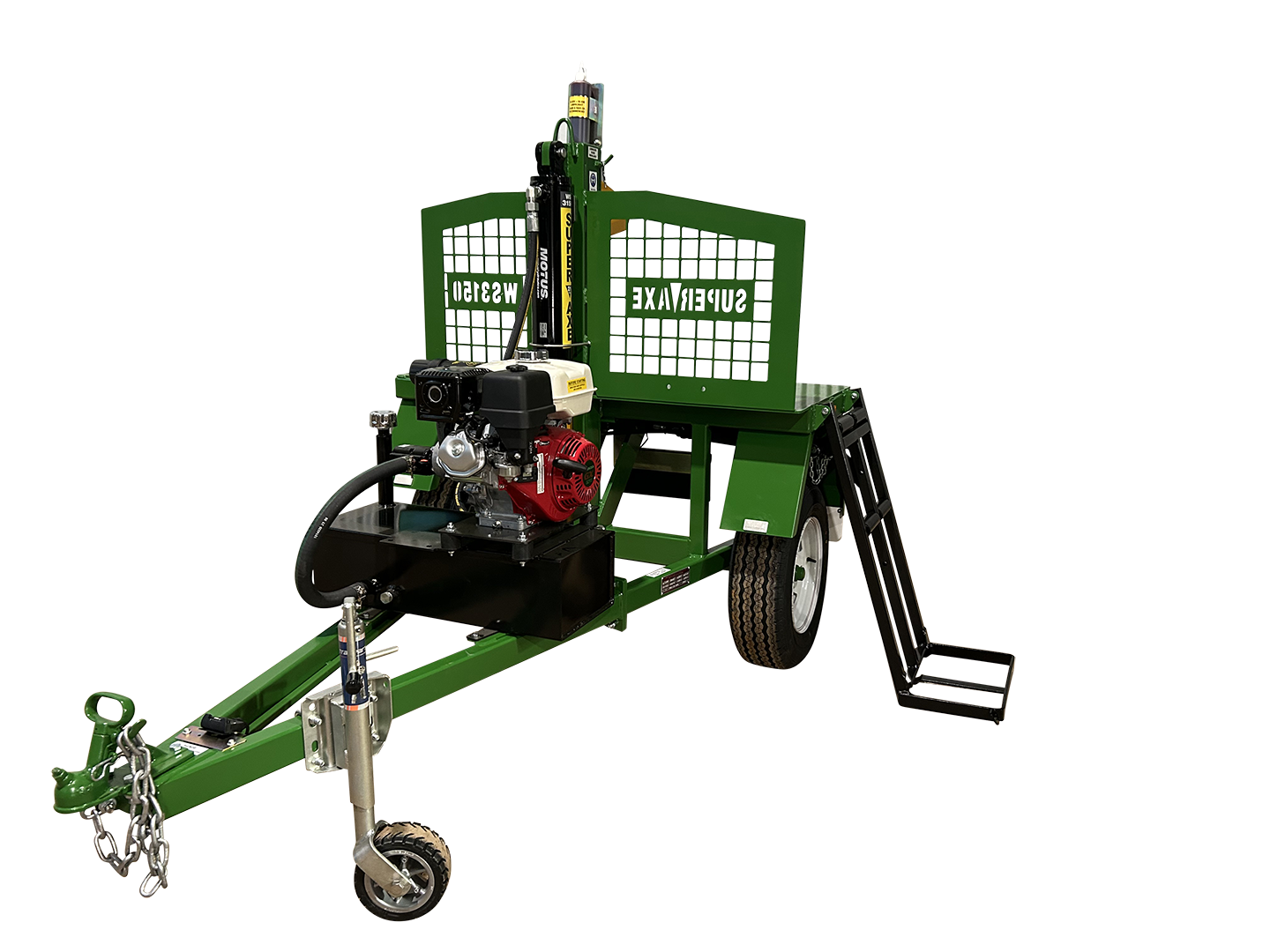

Featuring a 200kg capacity hydraulic log lifter, larger wheels, larger workbench and a larger frame the WS3150 is the second most powerful splitter in the range. The innovative double handed control with auto return ensures ease of use, quick cycle times & unmatched safety. The WS3150 is fitted with a 9hp engine delivering a whopping 21 tons of splitting power and a 7 second cycle time. A 13hp is also available. This model has all the attachments required to fit/retrofit an elevator or couple with optional infeed hopper for even greater output.

SPECS

Built to order in Australia

WS3150 OPTIONS

ENGINE

The WS3150 is available with a 9hp or 13hp genuine Honda GX series engine. The 9hp engine gives a cycle time of 7 seconds, and the 13hp option gives a cycle time of 6.5 seconds. Both engines are covered by extensive manufacturers warranty, are fuel efficient and easy to start.

HIRE KIT

Superaxe is the preffered woodsplitter for the Australian and New Zealand hire industry. The WS 3150 is able to be fitted with a hire kit, which includes heavy duty mudguards, a heavy duty swing up jockey wheel, permanent LED lights, reflectors, base plug mounted at the front of the draw bar and VIN plate. Fleet colours are also available by request. Including these reliable, safe and hard working wood splitters in your range is the best thing you can do for your hire business.

REGO KIT

All models are road-towable and can be registered for legal towing. If you are a Victorian resident, Whitlands Engineering can organise registration for you; interstate customers must file their own forms to the relevant Road Traffic Authority. The Registration kit includes permanent LED lights, reflectors, heavy duty mud guards and VIN plate

Elevator options

Load your wood directly into your truck or trailer and save double handling. This 3.6m Elevator fits to the WS3150 & WS4150 Superaxe models. The elevator will reach up to 3 meters and folds for travelling. It utilises a manual winch mechanism to fold and unfold elevator and set up takes only a few minutes. Also ideal for stockpiling. 6, 9.5 & 13 meter free standing elevators give more height and allow for easy positioning.

WHY BUY FROM US? - WE EARNED OUR REPUTATION

Since 1993, Whitlands Engineering has been designing and building legendary firewood machinery. From humble beginnings, Superaxe transformed the wood splitter industry, earning an unrivalled reputation for innovative design, safety and ease of use. Still family owned, over the last 30 years our company has grown to employ over 30 people and manufacture a whole range of options from the smallest Superaxe to the most powerful Log Saw. Every machine is built from the ground up in our north-east Victorian workshop by a highly skilled workforce. Many of our staff have been with the company for decades and bring with them genuine expertise in the design and building of our machinery. The quality of the construction is unmatched – these machines are built for a lifetime of use. Furthermore, we build every machine to order and only sell direct, meaning that our customer support team is on hand to assist with any product or technical enquiries. We go to great lengths to source from Australian suppliers, contribute to our local community and provide a positive work environment for our staff and their families. We’re extremely proud of what we do and what we build… Support Australian made – we do!

THE SUPERAXE RANGE

WS150

The WS150 features robust construction and a 150kg capacity cable operated block lifter. The innovative double handed control system ensures ease of use and unmatched safety. A 9hp engine is fitted as standard, but a 6hp engine is also available. The 9hp engine delivers a whopping 21 tons of splitting power and a 7 second cycle time.

WS3150

Featuring a 200kg capacity hydraulic block lifter, larger wheels, larger workbench and a larger frame the WS3150 is the second most powerful splitter in the range. The innovative double handed control with auto return ensures ease of use, quick cycle times & unmatched safety. The WS3150 is fitted with a 9hp engine delivering a whopping 21 tons of splitting power and a 6.5 second cycle time. A 13hp is also available. This model has all the attachments required to fit/retrofit an elevator or couple with optional infeed hopper for even greater output.

WS4150

The WS4150 features a 18hp Vanguard engine, 200kg capacity hydraulic block lifter, large bench area, offset splitting head, longer blade, in-bench rollers for easy block manoeuvring and the innovative double handed control system for safe and easy machine operation. This model has all the attachments required to fit/retrofit an elevator or couple with optional infeed hopper for even greater output.

TECHNICAL SPECIFICATIONS

  • ESTIMATED OUTPUT: Up to 4 cubic meters per hour output (guide only)
  • SPLITTING FORCE: 21 tons splitting force (9hp)
  • CYCLE TIME: 9hp engine – 7 seconds
  • ENGINE OPTIONS: 9hp or 13hp GX Series Honda
  • ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty
  • PUMPS: Two stage hydraulic pump
  • RAM: High quality Australian made 4 inch ram with 2 inch rod develops genuine 21 tons of splitting force
  • HYDRAULIC HOSES: All double wire rated ¾ inch hydraulic hoses
  • OIL RESERVOIR: 38 litre oil reservoir
  • BUILT TO LAST: Rugged heavy duty construction with minimal maintenance required, for a lifetime of trouble free use
  • BENCH: 1500mm wide x 570mm deep; Grip bars in bench (under blade) grip blocks for secure splitting
  • WARRANTY: Two year warranty on the frame
  • COUPLING: Approved 50mm, 2000kg rated cast iron coupling. Safety chain fitted

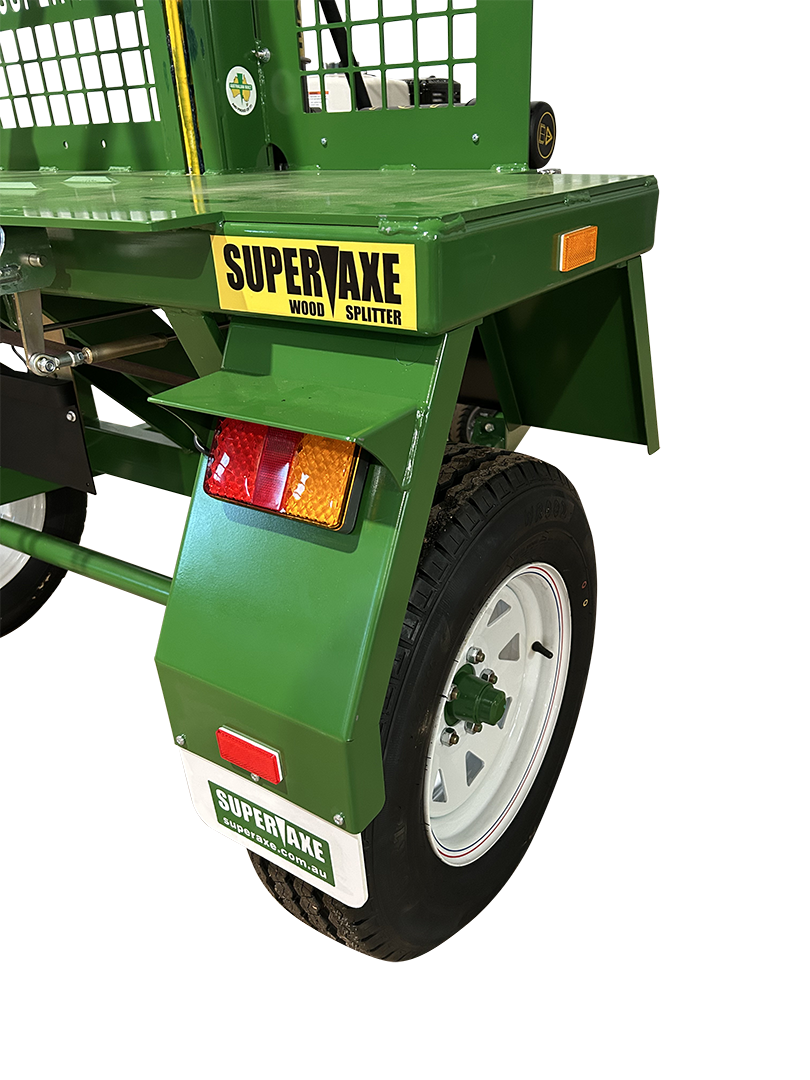

  • WHEELS AND HUBS: 184 x 14 Sunraysia wheels and high speed hubs. Handles all towing requirements.
  • JOCKEY WHEEL: High quality 8 inch heavy duty swing up jockey wheel
  • DIMENSIONS: Weight 550kg / Height 1700mm / Width 1450mm / Length 2400mm

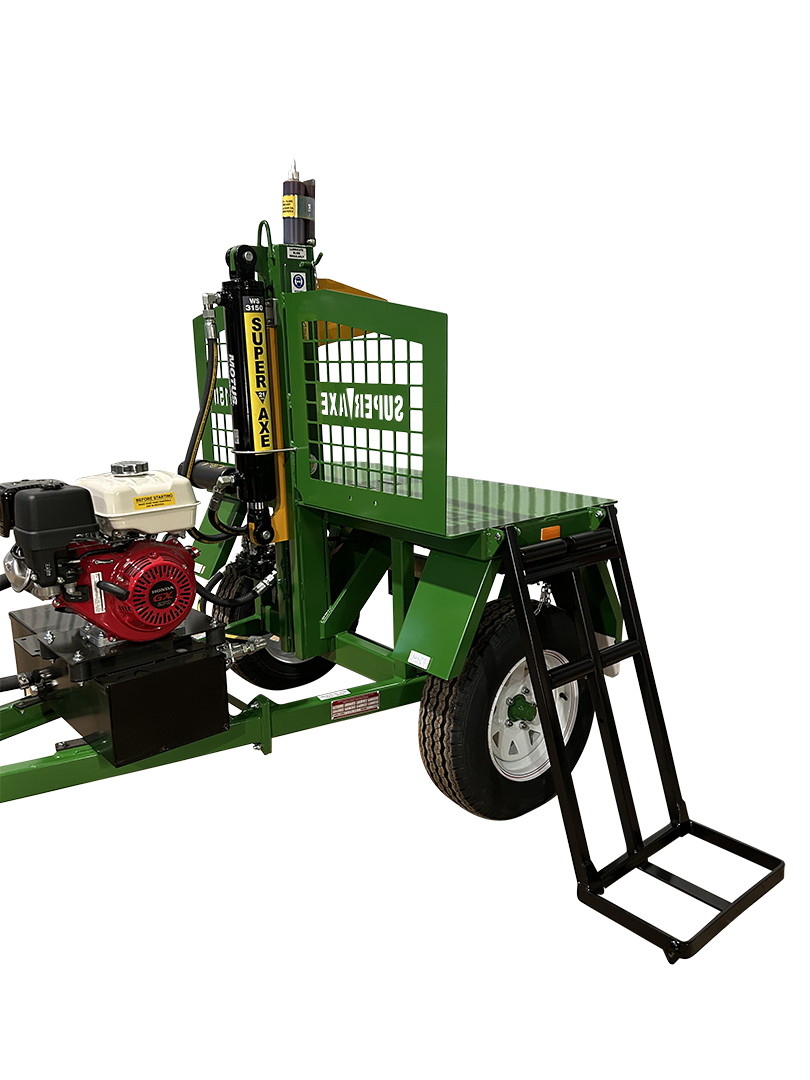

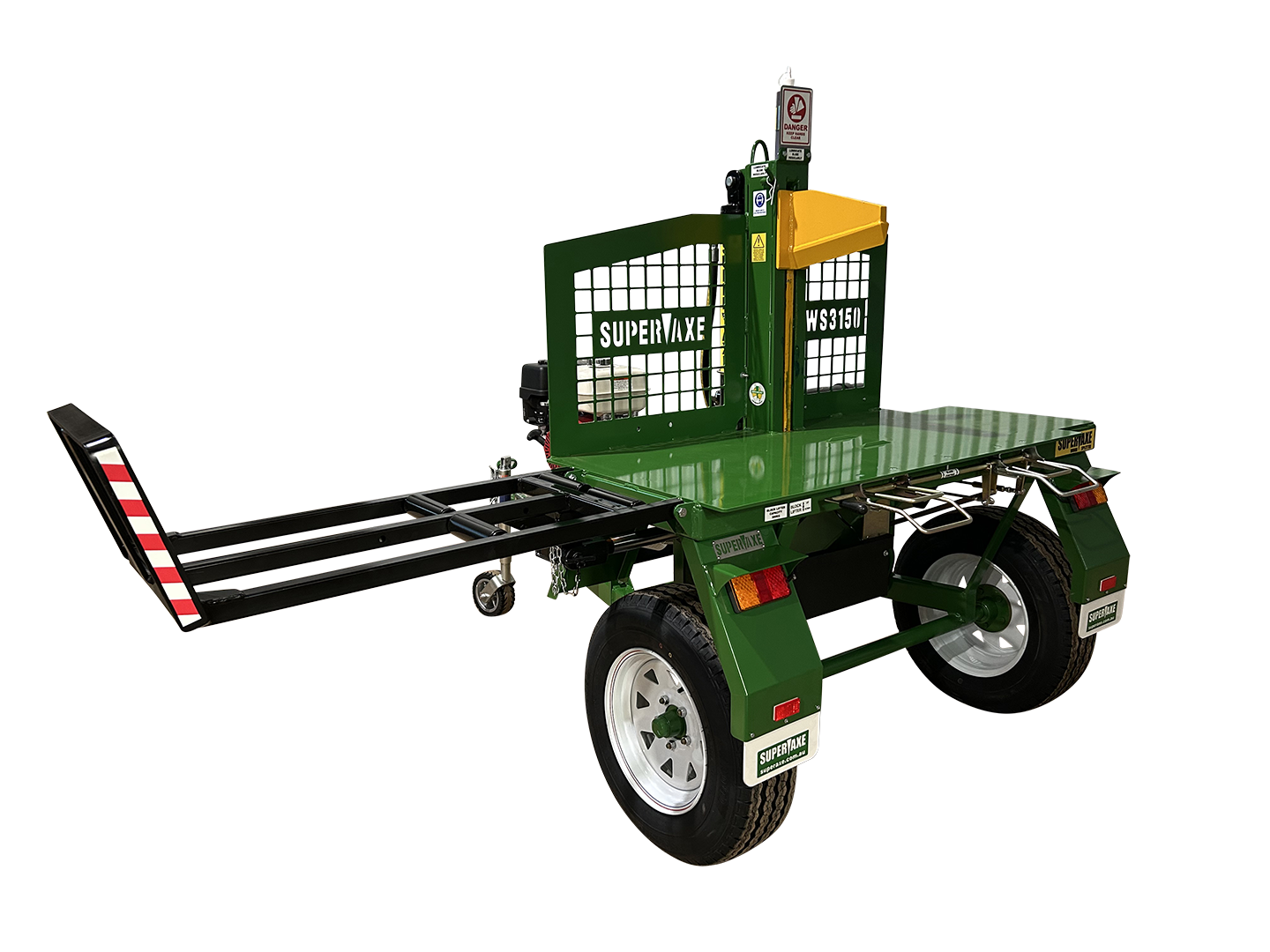

  • BLOCK LIFTER: Heavy duty hydraulic block lifter will lift 200kg blocks up to bench height.
  • TOWING: Block lifter is easily folded and secured for traveling.

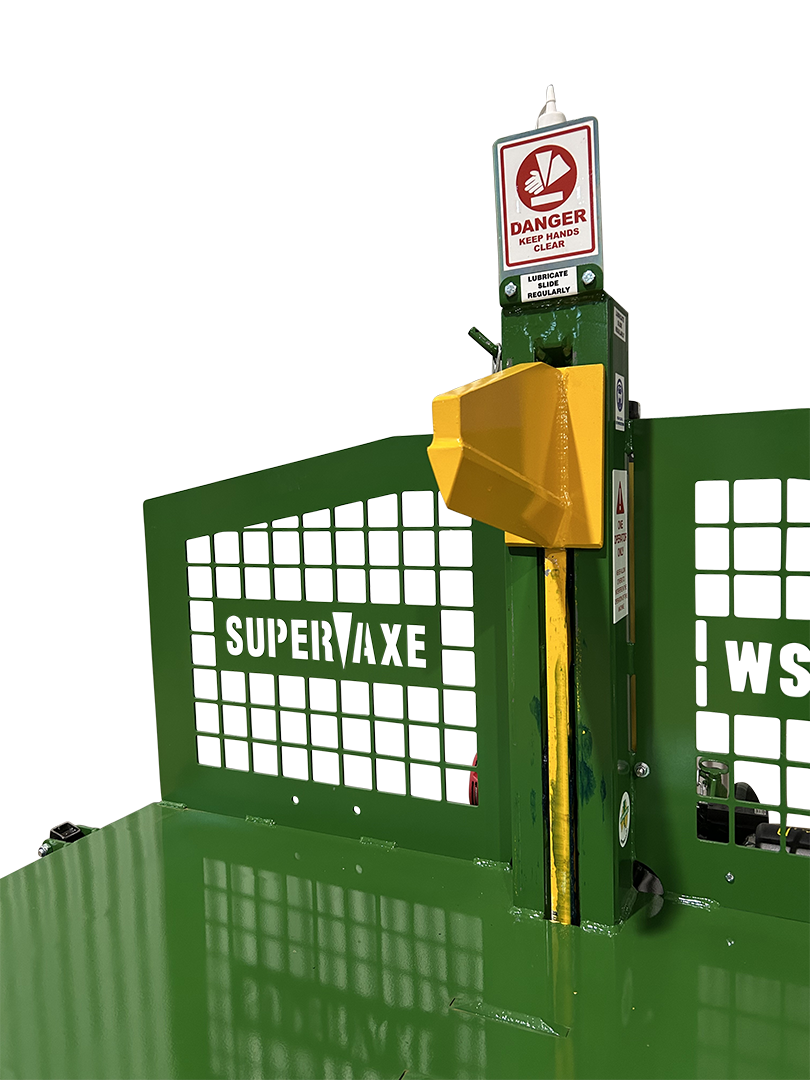

  • PATENTED SPLITTING SYSTEM: Vertical sliding blade design gives superior splitting performance and long life with minimal maintenance. 300mm cutting edge.
  • BLADE CONSTRUCTION: Blade and slide surfaces made from high tensile Hardox 450 steel
  • ERGONOMIC DESIGN: Ideal bench height & block lifter ensures the operator can work with a straight back with minimal bending or straining.

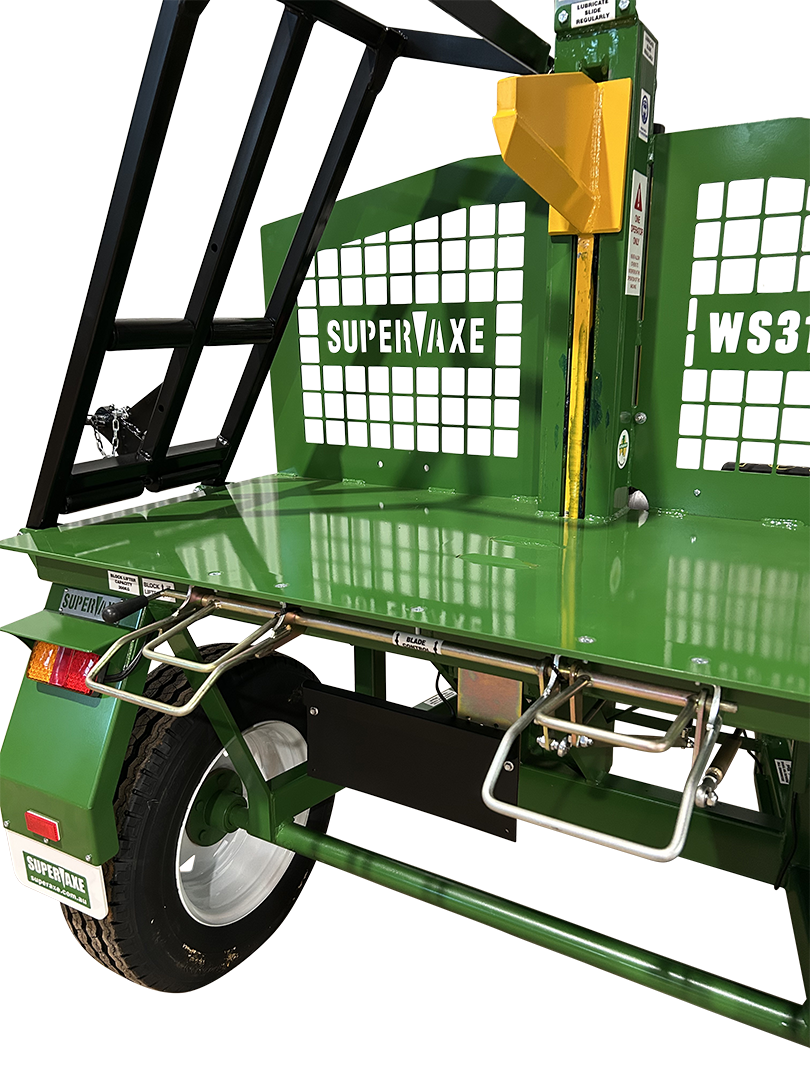

  • CONTROLS: The innovative double handed control system ensures ease of use, quick cycle times & unmatched safety
  • EASE OF USE: Easy splitting with ample room on table to work blocks. Never lift another block again.
  • SAFETY COMMUNICATION: Weatherproof canister on every machine contains an operator instruction & safety training sheet for quick reference. All machines also come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.
  • HIRE & RENTAL / REGISTRATION KIT: Includes HD mudguards, LED lights, VIN plate for registration compliance. Fleet colours available.
  • RAM OPTION: 3 1/2 inch ram for faster cycle times (15 ton splitting force) ideal for softer hardwoods.
  • OTHER OPTIONAL EXTRAS: Remote powered units, engine cover, electric start, hour meter etc.
  • READY TO ORDER? Please contact us to order a machine. Your machine will be built to order. Prepayment is required prior to dispatch
  • PICK UP: All machine are built in our workshop in North East Victoria. Once order is completed the machine can be collected from us directly during business hours. It can be towed if registration has been completed, or loaded into a truck, tandem trailer or flat tray ute.
  • FREIGHT: Through a network of freight depots Whitlands Engineering can organise economical freight to most places (pickup from your local depot may be required). We will advise & quote to your requirements when the order is confirmed. For freighting, all machines are partially dismantled & packed securely on a pallet so they can be handled with a forklift. Reassembly of machine requires some lifting equipment and basic tools. We can advise on this in detail at the time of order.
  • FINANCE: If you need finance please contact us, we can make a recommendation based on your requirements.
